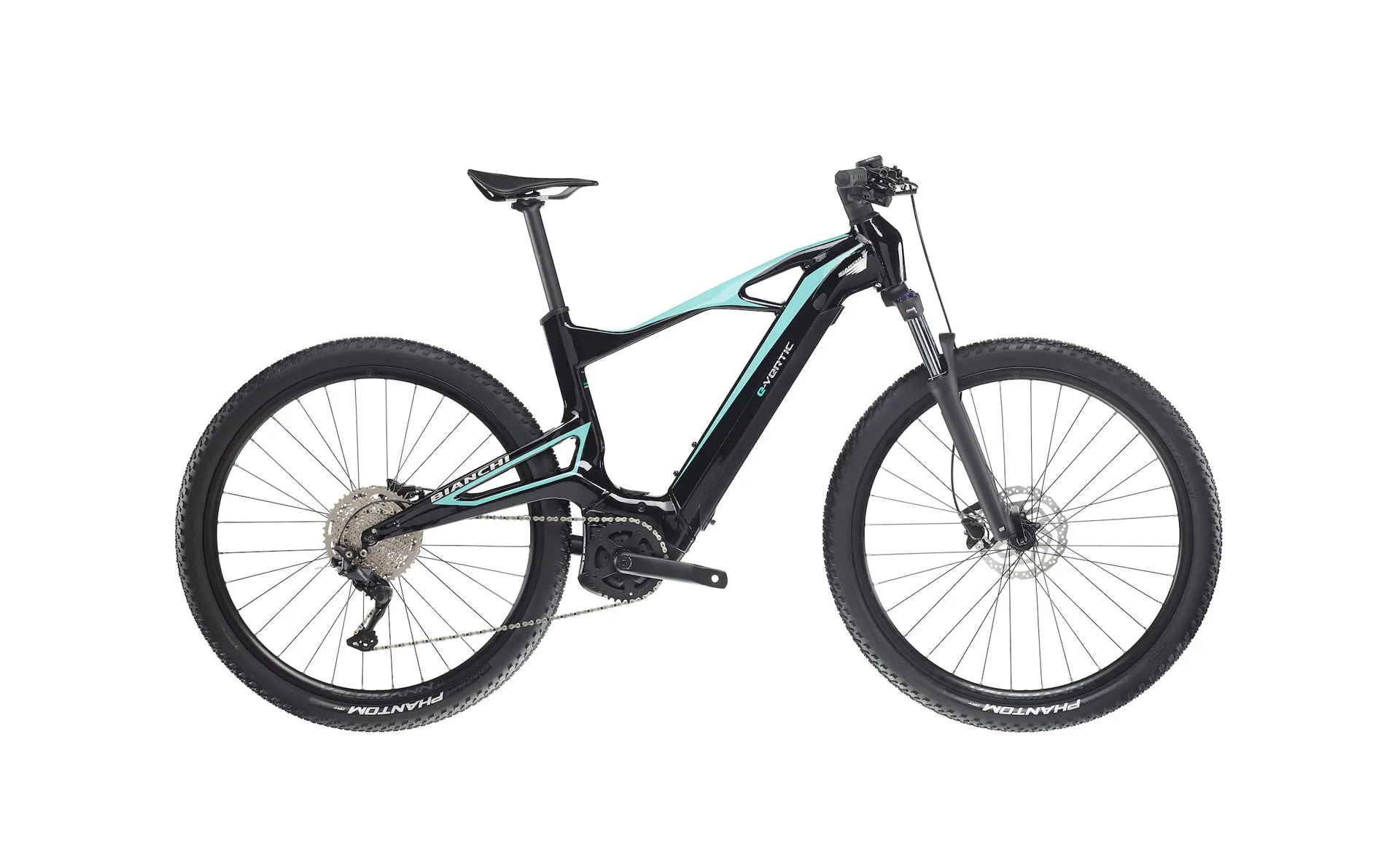

The e-Vertic X-Type is an aluminium hardtail ready to experience the thrills of an excursion into nature. Reactive, powerful and with a geometry that ensures stability and agility, it’s born to venture on the most scenic trails.
MOTOR
Bosch Performance Line motor unit 85Nm torque
BATTERY
Bosch Powertube 625Wh integrated battery, w/Display Purion
TECH SPECS
MOTOR UNIT
MOTOR Bosch Performance Line motor unit
BATTERY Bosch Powertube 625Wh integrated battery, w/Display Purion
FRAMESET
FRAME e-VERTIC X-Type ALU sizes: 43, 48, 53 – 9×135 mm quick release dropouts – Post mount 160 disc brake type
FORK Suntour NVX30 DS 29″, 100mm, AC4C, 30 mm stanchions, STKM, Cr-plating, Pitch 130 mm, Steerer 1-1/8″(TS), STKM, O.L.D. 9-100, Post 160 Direct
HEADSET Headset 1,5″” top / 1,5″” bottom – bearings – integrated cable routing Starnut, Alloy Topcap 1 1/8“ crown race for ZS56, w/o seal
DRIVETRAIN
SHIFTERS Sram X5 TRIGGER REAR 9sp
REAR DERAILLEUR Sram RD X7 9sp
CRANKSET FSA Direct Mount Steel Chainring – 38T / w/HT Steel / ED / C.L. 50mm CK-200 FSA E-Bike Diecast Crankset – Gen3 / 170mm / Die cast aluminum Bosch Gen3 Bolt – Bosch Gen3 crank bolt
BB included in the motor
CHAIN Kmc e9S NPBK 1/2″ x 11/128″
BRAKES
BRAKES Shimano DISC BRAKE ASSEMBLED SET, BR-MT200, SM-MA-F180P/P2, RESIN PAD, 1000MM HOSE/1700MM HOSE
ROTOR Shimano, SM-RT10, 180mm, W/LOCK RING FOR RESIN PAD ONLY
WHEELS
REARHUB Formula CL-1422 – CENTER LOCK, J-BEND, W/QR, FOR SHIMANO MTB 8/ 9/ 10/ 11-SPEED – O.L.D. 135 mm – AXLE 145 mm
RIMS Velomann E-Sport Tubeless Ready 29″, 25-622, 32 hole black,
TIRE Chaoyang Phantom dry 29×2.3, 60tpi, 2C-MTB
COCKPIT
STEM Velomann Viper0, 60 mm, 31,8 mm, 1″1/8
HANDLEBAR Velomann, width 740mm, diam.31,8mm, 9° backsweep, 15mm rise,DB Alloy
GRIPS T-One Rock T-GP34 single lock grip , TPR, plastic inner body, aluminium clamp
SADDLE
SEATPOST Velomann , lenght 350mm for 15,17” size and 400mm for 19,21”, diam.31,6mm, 0mm seatback
SADDLE Selle Italia Model X Superflow
